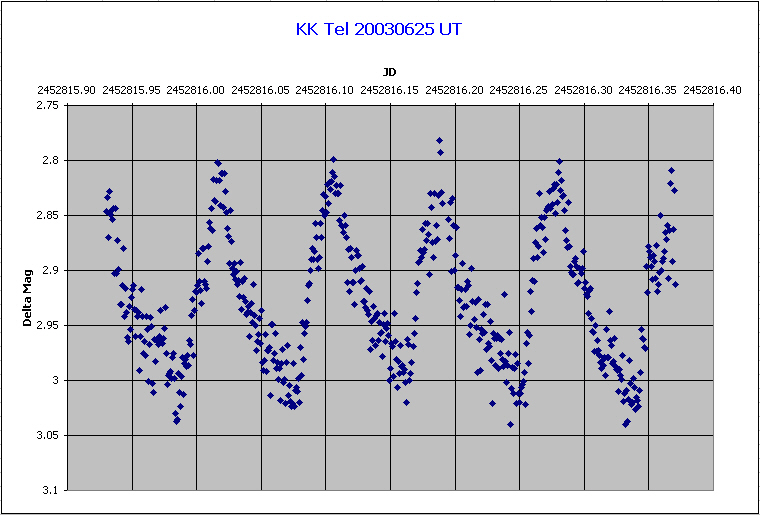

plot.jpgDear Taichi A great result! Six superhumps and all data in accordance with last year's results. And it's clear again tonight (for now!) Data file is the AIP photometry output file. Report file is my listing of all circumstances, and results summary. Plot file is the graph of V-C. Best regards Tom Tom Richards Woodridge Observatory 8 Diosma Rd, Eltham, Vic 3095, Australia. Tel +61(0)3 9431-1072, Fax +61(0)3 9439-1067 http://vsnet.WoodridgeObsy.org Carpe noctem!
AIP4Win Multi-Image Photometry Tool Analysis of 562 images from directory: D:\Astronomy\Imaging\3003-06-25 KK Tel\Calibrated Radius of star diaphragm: 3.5 Sky annulus inner radius: 10 Sky annulus outer Radius: 14 Search Radius: 2 Initial Comparison Star coords: X=162.74, Y=122.56 Initial Variable Star coords: X=208.75, Y=130.91 Initial Check Star coords: X=210.68, Y=72.58 Image time = time in FITS file header or log file. JD calculated from image time plus half of exposure duration. JD time zone correction added = 0 hours. JD user correction (True - Log) applied = 0 seconds. JD heliocentric correction added = 0 seconds. Image Date Time Exp ADU Com ADU Sky ADU Var V-C mag ADU Chk K-C mag Julian Day KK Tel E-001C.fit 2003-06-25 10:18:30 60 130851.5 1382.9 9510.5 2.846 8758.4 2.936 2452815.92986111 KK Tel E-002C.fit 2003-06-25 10:19:37 60 129037.1 1373.6 9482.4 2.834 8230.9 2.988 2452815.93063657 KK Tel E-003C.fit 2003-06-25 10:20:44 60 131349.0 1365.0 9342.1 2.870 8389.2 2.987 2452815.93141204 KK Tel E-004C.fit 2003-06-25 10:21:51 60 130243.3 1361.2 9631.1 2.828 8833.4 2.922 2452815.9321875 KK Tel E-005C.fit 2003-06-25 10:22:58 60 131674.7 1360.6 9544.1 2.849 8547.7 2.969 2452815.93296296 KK Tel E-006C.fit 2003-06-25 10:24:05 60 130520.9 1342.9 9495.7 2.845 8634.2 2.949 2452815.93373843 KK Tel E-007C.fit 2003-06-25 10:25:12 60 131822.6 1348.4 9511.3 2.854 8896.5 2.927 2452815.93451389 KK Tel E-008C.fit 2003-06-25 10:26:18 60 131543.7 1336.1 9586.6 2.844 8639.6 2.956 2452815.93527778 KK Tel E-009C.fit 2003-06-25 10:27:25 60 131816.8 1337.3 9093.1 2.903 8637.5 2.959 2452815.93605324 KK Tel E-010C.fit 2003-06-25 10:28:33 60 131651.5 1334.6 9586.9 2.844 8701.9 2.950 2452815.93684028 KK Tel E-011C.fit 2003-06-25 10:29:40 60 133275.2 1326.6 9193.6 2.903 8646.5 2.970 2452815.93761574 KK Tel E-012C.fit 2003-06-25 10:30:47 60 132120.8 1316.9 9366.9 2.873 8654.6 2.959 2452815.9383912 KK Tel E-013C.fit 2003-06-25 10:31:55 60 132302.5 1302.2 9163.2 2.899 8759.5 2.948 2452815.93917824 KK Tel E-015C.fit 2003-06-25 10:34:09 60 134244.5 1271.4 9023.6 2.931 8574.2 2.987 2452815.94072917 KK Tel E-016C.fit 2003-06-25 10:35:16 60 133886.2 1264.8 9002.5 2.931 8957.7 2.936 2452815.94150463 KK Tel E-017C.fit 2003-06-25 10:36:23 60 134147.6 1250.9 9158.7 2.914 9092.6 2.922 2452815.94228009 KK Tel E-018C.fit 2003-06-25 10:37:30 60 132738.8 1247.6 9349.7 2.880 8694.9 2.959 2452815.94305556 KK Tel E-019C.fit 2003-06-25 10:38:37 60 133498.6 1240.7 8885.0 2.942 8523.7 2.987 2452815.94383102 KK Tel E-020C.fit 2003-06-25 10:39:43 60 134014.8 1235.3 9134.7 2.916 8927.9 2.941 2452815.94459491 KK Tel E-021C.fit 2003-06-25 10:40:50 60 133109.1 1223.3 8892.0 2.938 9064.8 2.917 2452815.94537037 KK Tel E-022C.fit 2003-06-25 10:41:57 60 133734.1 1210.1 8747.1 2.961 8955.9 2.935 2452815.94614583 KK Tel E-023C.fit 2003-06-25 10:43:04 60 134296.6 1207.4 8749.3 2.965 8572.5 2.987 2452815.9469213 KK Tel E-024C.fit 2003-06-25 10:44:11 60 132496.4 1196.3 8888.9 2.933 8611.3 2.968 2452815.94769676 KK Tel E-025C.fit 2003-06-25 10:45:18 60 134149.9 1180.3 8829.5 2.954 8681.0 2.973 2452815.94847222 KK Tel E-026C.fit 2003-06-25 10:46:24 60 134299.0 1179.9 9077.5 2.925 8807.3 2.958 2452815.94923611 KK Tel E-027C.fit 2003-06-25 10:47:31 60 132729.4 1178.8 9036.8 2.917 8733.5 2.954 2452815.95001157 KK Tel E-028C.fit 2003-06-25 10:48:38 60 131736.2 1174.3 8996.1 2.914 8815.4 2.936 2452815.95078704 KK Tel E-029C.fit 2003-06-25 10:49:45 60 129987.2 1168.8 8708.9 2.935 8650.8 2.942 2452815.9515625 KK Tel E-030C.fit 2003-06-25 10:50:52 60 132929.4 1159.5 8705.2 2.960 8872.2 2.939 2452815.95233796 KK Tel E-031C.fit 2003-06-25 10:51:58 60 132585.9 1155.3 8875.5 2.936 8955.3 2.926 2452815.95310185 KK Tel E-032C.fit 2003-06-25 10:53:05 60 133787.6 1147.4 8904.3 2.942 8641.8 2.975 2452815.95387731 KK Tel E-033C.fit 2003-06-25 10:54:12 60 129910.6 1142.2 8675.2 2.938 8357.6 2.979 2452815.95465278 KK Tel E-034C.fit 2003-06-25 10:55:19 60 135093.1 1133.9 8595.9 2.991 8832.7 2.961 2452815.95542824 KK Tel E-035C.fit 2003-06-25 10:56:26 60 133069.4 1138.0 8711.1 2.960 8751.7 2.955 2452815.9562037 KK Tel E-036C.fit 2003-06-25 10:57:33 60 134487.8 1131.2 9156.7 2.917 8832.9 2.956 2452815.95697917 KK Tel E-037C.fit 2003-06-25 10:58:39 60 132955.5 1130.4 8848.5 2.942 8924.4 2.933 2452815.95774306 KK Tel E-038C.fit 2003-06-25 10:59:46 60 133877.7 1121.6 8644.4 2.975 8641.6 2.975 2452815.95851852 KK Tel E-039C.fit 2003-06-25 11:00:53 60 135334.5 1105.6 8817.0 2.965 8861.6 2.960 2452815.95929398 KK Tel E-040C.fit 2003-06-25 11:02:00 60 136426.5 1099.4 8790.0 2.977 8821.5 2.973 2452815.96006944 KK Tel E-041C.fit 2003-06-25 11:03:07 60 134386.0 1098.5 8947.7 2.942 9013.4 2.934 2452815.96084491 KK Tel E-042C.fit 2003-06-25 11:04:14 60 134868.1 1102.6 8879.9 2.954 8815.8 2.962 2452815.96162037 KK Tel E-043C.fit 2003-06-25 11:05:21 60 133839.1 1117.8 8437.6 3.001 8789.0 2.957 2452815.96239583 KK Tel E-044C.fit 2003-06-25 11:06:28 60 135177.4 1098.7 8792.0 2.967 8962.4 2.946 2452815.9631713 KK Tel E-045C.fit 2003-06-25 11:07:36 60 136331.1 1097.9 9068.5 2.943 9179.1 2.929 2452815.96395833 KK Tel E-046C.fit 2003-06-25 11:08:43 60 134888.4 1101.2 8906.8 2.951 8897.8 2.952 2452815.9647338 KK Tel E-047C.fit 2003-06-25 11:09:50 60 134573.1 1078.9 8465.7 3.003 8582.5 2.988 2452815.96550926 KK Tel E-048C.fit 2003-06-25 11:10:56 60 136068.0 1072.0 8500.0 3.011 8888.1 2.962 2452815.96627315 KK Tel E-049C.fit 2003-06-25 11:12:03 60 134552.8 1070.9 8784.6 2.963 8901.4 2.949 2452815.96704861 KK Tel E-050C.fit 2003-06-25 11:13:10 60 136138.6 1064.5 8727.2 2.983 9033.0 2.945 2452815.96782407 KK Tel E-051C.fit 2003-06-25 11:14:17 60 135171.3 1064.4 8817.7 2.964 9016.4 2.940 2452815.96859954 KK Tel E-052C.fit 2003-06-25 11:15:24 60 135921.9 1059.5 8862.9 2.964 8804.1 2.972 2452815.969375 KK Tel E-053C.fit 2003-06-25 11:16:31 60 134201.7 1054.7 8726.9 2.967 8815.0 2.956 2452815.97015046 KK Tel E-054C.fit 2003-06-25 11:17:38 60 134552.6 1057.0 8807.0 2.960 8779.2 2.964 2452815.97092593 KK Tel E-055C.fit 2003-06-25 11:18:45 60 135985.5 1054.2 9104.4 2.936 9182.4 2.926 2452815.97170139 KK Tel E-056C.fit 2003-06-25 11:19:51 60 135634.2 1044.7 8855.5 2.963 9058.7 2.938 2452815.97246528 KK Tel E-057C.fit 2003-06-25 11:20:59 60 136624.4 1043.9 8892.0 2.966 8889.7 2.967 2452815.97325231 KK Tel E-058C.fit 2003-06-25 11:22:06 60 136749.3 1044.4 8933.4 2.962 9034.7 2.950 2452815.97402778 KK Tel E-059C.fit 2003-06-25 11:23:12 60 136157.2 1037.1 8969.4 2.953 8884.1 2.964 2452815.97479167 KK Tel E-060C.fit 2003-06-25 11:24:19 60 135688.0 1026.1 9097.3 2.934 8988.9 2.947 2452815.97556713 KK Tel E-061C.fit 2003-06-25 11:25:26 60 136096.0 1027.0 8788.6 2.975 8931.6 2.957 2452815.97634259 KK Tel E-062C.fit 2003-06-25 11:26:33 60 136094.7 1019.1 8559.1 3.004 9100.8 2.937 2452815.97711806 KK Tel E-063C.fit 2003-06-25 11:27:40 60 136508.3 1012.5 8649.9 2.995 9100.9 2.940 2452815.97789352 KK Tel E-064C.fit 2003-06-25 11:28:47 60 137867.5 1006.4 8744.9 2.994 9079.3 2.954 2452815.97866898 KK Tel E-065C.fit 2003-06-25 11:29:54 60 136070.5 999.9 8645.8 2.992 9037.5 2.944 2452815.97944444 KK Tel E-066C.fit 2003-06-25 11:31:00 60 137273.7 994.0 8674.1 2.998 9245.9 2.929 2452815.98020833 KK Tel E-067C.fit 2003-06-25 11:32:07 60 137410.4 984.8 8840.9 2.979 9125.6 2.944 2452815.9809838 KK Tel E-068C.fit 2003-06-25 11:33:14 60 138231.9 973.0 8928.7 2.975 9233.3 2.938 2452815.98175926 KK Tel E-069C.fit 2003-06-25 11:34:21 60 138187.1 967.0 8738.2 2.998 9294.9 2.931 2452815.98253472 KK Tel E-070C.fit 2003-06-25 11:35:28 60 136830.1 961.0 8395.1 3.030 9327.3 2.916 2452815.98331019 KK Tel E-071C.fit 2003-06-25 11:36:34 60 137559.1 950.5 8384.9 3.037 9326.8 2.922 2452815.98407407 KK Tel E-072C.fit 2003-06-25 11:37:41 60 138304.4 947.1 8451.7 3.035 9175.0 2.946 2452815.98484954 KK Tel E-073C.fit 2003-06-25 11:38:48 60 139632.7 942.8 8859.7 2.994 9357.5 2.935 2452815.985625 KK Tel E-074C.fit 2003-06-25 11:39:55 60 139359.1 936.1 8707.9 3.011 9204.7 2.950 2452815.98640046 KK Tel E-075C.fit 2003-06-25 11:41:02 60 138741.5 930.4 8563.5 3.024 9177.7 2.949 2452815.98717593 KK Tel E-076C.fit 2003-06-25 11:42:09 60 139863.0 925.3 8855.0 2.996 9280.6 2.945 2452815.98795139 KK Tel E-077C.fit 2003-06-25 11:43:15 60 138995.0 912.1 8943.7 2.979 9235.6 2.944 2452815.98871528 KK Tel E-078C.fit 2003-06-25 11:44:22 60 138982.8 903.5 8666.3 3.013 9336.4 2.932 2452815.98949074 KK Tel E-079C.fit 2003-06-25 11:45:29 60 139019.8 899.6 8890.9 2.985 9203.6 2.948 2452815.9902662 KK Tel E-080C.fit 2003-06-25 11:46:36 60 136425.3 892.2 8758.7 2.981 9543.8 2.888 2452815.99104167 KK Tel E-081C.fit 2003-06-25 11:47:42 60 137624.0 888.0 8786.5 2.987 9225.8 2.934 2452815.99180556 KK Tel E-082C.fit 2003-06-25 11:48:49 60 137499.0 888.5 8858.5 2.977 9067.9 2.952 2452815.99258102 KK Tel E-083C.fit 2003-06-25 11:49:56 60 139733.9 882.5 8927.4 2.986 9160.8 2.958 2452815.99335648 KK Tel E-084C.fit 2003-06-25 11:51:03 60 138327.0 879.1 9023.4 2.964 9466.9 2.912 2452815.99413194 KK Tel E-085C.fit 2003-06-25 11:52:10 60 136968.5 868.2 8906.9 2.967 9210.2 2.931 2452815.99490741 KK Tel E-086C.fit 2003-06-25 11:53:16 60 137630.2 864.8 9168.6 2.941 9107.4 2.948 2452815.9956713 KK Tel E-087C.fit 2003-06-25 11:54:23 60 137751.1 864.8 9308.2 2.926 9147.4 2.944 2452815.99644676 KK Tel E-088C.fit 2003-06-25 11:55:30 60 136778.8 858.3 8817.2 2.977 9185.5 2.932 2452815.99722222 KK Tel E-089C.fit 2003-06-25 11:56:37 60 136614.6 856.3 9141.3 2.936 9128.7 2.938 2452815.99799769 KK Tel E-090C.fit 2003-06-25 11:57:44 60 137707.3 853.2 9359.2 2.919 9219.3 2.936 2452815.99877315 KK Tel E-091C.fit 2003-06-25 11:58:51 60 138782.7 857.3 9428.5 2.920 9388.9 2.924 2452815.99954861 KK Tel E-092C.fit 2003-06-25 11:59:57 60 137854.4 860.9 9414.1 2.914 8989.7 2.964 2452816.0003125 KK Tel E-093C.fit 2003-06-25 12:01:04 60 137743.3 855.5 9658.2 2.885 9143.8 2.945 2452816.00108796 KK Tel E-094C.fit 2003-06-25 12:02:11 60 138014.4 846.8 9458.6 2.910 9084.1 2.954 2452816.00186343 KK Tel E-095C.fit 2003-06-25 12:03:18 60 138096.1 845.3 9397.4 2.918 9275.2 2.932 2452816.00263889 KK Tel E-096C.fit 2003-06-25 12:04:25 60 140710.0 844.9 9471.0 2.930 9372.5 2.941 2452816.00341435 KK Tel E-097C.fit 2003-06-25 12:05:31 60 137715.2 836.4 9703.9 2.880 9419.8 2.912 2452816.00417824 KK Tel E-098C.fit 2003-06-25 12:06:38 60 137750.4 833.1 9710.1 2.880 9109.0 2.949 2452816.0049537 KK Tel E-099C.fit 2003-06-25 12:07:45 60 133959.5 832.0 9184.6 2.910 8865.6 2.948 2452816.00572917 KK Tel E-100C.fit 2003-06-25 12:08:52 60 133003.7 830.8 9091.2 2.913 9131.7 2.908 2452816.00650463 KK Tel E-101C.fit 2003-06-25 12:09:58 60 134943.6 829.9 9203.4 2.916 8926.1 2.949 2452816.00726852 KK Tel E-102C.fit 2003-06-25 12:11:05 60 136817.8 826.5 9533.1 2.892 8770.0 2.983 2452816.00804398 KK Tel E-103C.fit 2003-06-25 12:12:12 60 138255.9 826.5 9760.8 2.878 9038.1 2.962 2452816.00881944 KK Tel E-104C.fit 2003-06-25 12:13:19 60 137610.7 827.8 9912.0 2.856 9109.9 2.948 2452816.00959491 KK Tel E-105C.fit 2003-06-25 12:14:26 60 136773.1 825.4 9801.8 2.862 9106.1 2.942 2452816.01037037 KK Tel E-106C.fit 2003-06-25 12:15:32 60 137593.2 812.0 10027.5 2.844 9421.4 2.911 2452816.01113426 KK Tel E-107C.fit 2003-06-25 12:16:39 60 138193.4 810.9 9881.0 2.864 9331.9 2.926 2452816.01190972 KK Tel E-108C.fit 2003-06-25 12:17:46 60 138248.8 809.4 10322.0 2.817 9119.1 2.952 2452816.01268519 KK Tel E-109C.fit 2003-06-25 12:18:53 60 138352.5 809.4 10152.8 2.836 9353.8 2.925 2452816.01346065 KK Tel E-110C.fit 2003-06-25 12:20:00 60 139317.7 799.2 10218.5 2.837 9038.5 2.970 2452816.01423611 KK Tel E-111C.fit 2003-06-25 12:21:07 60 138770.6 798.0 10352.0 2.818 9014.9 2.968 2452816.01501157 KK Tel E-112C.fit 2003-06-25 12:22:14 60 139147.5 799.6 10538.3 2.802 9042.3 2.968 2452816.01578704 KK Tel E-113C.fit 2003-06-25 12:23:20 60 139019.3 801.1 10514.3 2.803 9136.8 2.956 2452816.01655093 KK Tel E-114C.fit 2003-06-25 12:24:27 60 140198.8 800.5 10455.8 2.818 9410.1 2.933 2452816.01732639 KK Tel E-115C.fit 2003-06-25 12:25:34 60 138798.2 795.7 10139.3 2.841 9142.1 2.953 2452816.01810185 KK Tel E-116C.fit 2003-06-25 12:26:41 60 140321.4 797.8 10523.0 2.812 9404.0 2.935 2452816.01887731 KK Tel E-117C.fit 2003-06-25 12:27:48 60 140520.2 798.7 10547.0 2.812 9330.7 2.945 2452816.01965278 KK Tel E-118C.fit 2003-06-25 12:28:54 60 140186.5 797.0 10222.2 2.843 9335.0 2.941 2452816.02041667 KK Tel E-119C.fit 2003-06-25 12:30:01 60 139537.3 790.7 10472.1 2.812 9258.0 2.945 2452816.02119213 KK Tel E-120C.fit 2003-06-25 12:31:08 60 140478.9 790.4 10381.1 2.828 9145.7 2.966 2452816.02196759 KK Tel E-121C.fit 2003-06-25 12:32:15 60 139337.3 801.0 10118.7 2.847 9148.8 2.957 2452816.02274306 KK Tel E-122C.fit 2003-06-25 12:33:22 60 140510.8 792.4 10070.0 2.862 9403.0 2.936 2452816.02351852 KK Tel E-123C.fit 2003-06-25 12:34:29 60 141679.6 786.6 10088.4 2.869 9467.2 2.938 2452816.02429398 KK Tel E-124C.fit 2003-06-25 12:35:35 60 141211.4 784.6 9822.3 2.894 9335.0 2.949 2452816.02505787 KK Tel E-125C.fit 2003-06-25 12:36:42 60 141773.3 775.3 10316.4 2.845 9446.9 2.941 2452816.02583333 KK Tel E-126C.fit 2003-06-25 12:37:49 60 141726.1 774.5 10041.5 2.874 9125.1 2.978 2452816.0266088 KK Tel E-127C.fit 2003-06-25 12:38:56 60 141649.0 764.1 9820.7 2.898 9429.7 2.942 2452816.02738426 KK Tel E-128C.fit 2003-06-25 12:40:03 60 141934.4 759.5 9786.0 2.904 9377.5 2.950 2452816.02815972 KK Tel E-129C.fit 2003-06-25 12:41:10 60 140806.4 761.4 9796.8 2.894 9347.9 2.945 2452816.02893519 KK Tel E-130C.fit 2003-06-25 12:42:16 60 141385.3 752.9 9713.8 2.908 9448.2 2.938 2452816.02969907 KK Tel E-131C.fit 2003-06-25 12:43:23 60 143268.7 751.4 9905.9 2.901 9417.9 2.955 2452816.03047454 KK Tel E-132C.fit 2003-06-25 12:44:30 60 141911.9 739.0 9700.7 2.913 9170.2 2.974 2452816.03125 KK Tel E-133C.fit 2003-06-25 12:45:37 60 142062.5 740.8 9744.1 2.909 9514.7 2.935 2452816.03202546 KK Tel E-134C.fit 2003-06-25 12:46:44 60 142600.0 736.4 9652.9 2.924 9279.9 2.966 2452816.03280093 KK Tel E-135C.fit 2003-06-25 12:47:51 60 140385.7 735.9 9771.6 2.893 9215.8 2.957 2452816.03357639 KK Tel E-136C.fit 2003-06-25 12:48:57 60 141640.4 737.1 9488.7 2.935 9379.4 2.948 2452816.03434028 KK Tel E-137C.fit 2003-06-25 12:50:04 60 142506.2 737.5 9765.2 2.910 9604.3 2.928 2452816.03511574 KK Tel E-138C.fit 2003-06-25 12:51:11 60 142621.9 735.2 9638.2 2.925 9475.1 2.944 2452816.0358912 KK Tel E-139C.fit 2003-06-25 12:52:18 60 142210.8 738.4 9773.8 2.907 9093.4 2.986 2452816.03666667 KK Tel E-140C.fit 2003-06-25 12:53:25 60 141130.4 747.6 9512.4 2.928 9442.0 2.936 2452816.03744213 KK Tel E-141C.fit 2003-06-25 12:54:32 60 140586.0 747.8 9376.4 2.940 9212.7 2.959 2452816.03821759 KK Tel E-142C.fit 2003-06-25 12:55:38 60 140679.7 751.8 9401.1 2.938 9369.9 2.941 2452816.03898148 KK Tel E-143C.fit 2003-06-25 12:56:45 60 140893.9 744.0 9453.9 2.933 9421.1 2.937 2452816.03975694 KK Tel E-144C.fit 2003-06-25 12:57:52 60 142541.6 736.5 9331.8 2.960 9223.0 2.973 2452816.04053241 KK Tel E-145C.fit 2003-06-25 12:58:59 60 143876.3 731.3 9607.8 2.938 9293.0 2.975 2452816.04130787 KK Tel E-146C.fit 2003-06-25 13:00:06 60 143153.1 729.6 9634.5 2.930 9365.8 2.961 2452816.04208333 KK Tel E-147C.fit 2003-06-25 13:01:13 60 141731.6 729.9 9393.2 2.947 9250.4 2.963 2452816.0428588 KK Tel E-148C.fit 2003-06-25 13:02:20 60 140081.8 727.8 9580.0 2.913 9336.1 2.941 2452816.04363426 KK Tel E-149C.fit 2003-06-25 13:03:26 60 140151.2 720.0 9333.5 2.941 9415.5 2.932 2452816.04439815 KK Tel E-150C.fit 2003-06-25 13:04:33 60 141343.5 715.1 9337.4 2.950 9326.2 2.951 2452816.04517361 KK Tel E-151C.fit 2003-06-25 13:05:40 60 141203.3 711.9 9132.5 2.973 9456.5 2.935 2452816.04594907 KK Tel E-152C.fit 2003-06-25 13:06:47 60 141541.9 703.5 9224.3 2.965 9263.0 2.960 2452816.04672454 KK Tel E-153C.fit 2003-06-25 13:07:54 60 142127.8 702.0 9325.5 2.958 9504.8 2.937 2452816.0475 KK Tel E-154C.fit 2003-06-25 13:09:01 60 141454.5 692.3 9397.1 2.944 9743.8 2.905 2452816.04827546 KK Tel E-155C.fit 2003-06-25 13:10:07 60 143008.8 691.8 9309.5 2.966 9573.7 2.936 2452816.04903935 KK Tel E-156C.fit 2003-06-25 13:11:14 60 142041.7 691.1 9502.5 2.936 9396.2 2.949 2452816.04981481 KK Tel E-157C.fit 2003-06-25 13:12:21 60 142058.9 687.2 9092.6 2.984 9476.7 2.940 2452816.05059028 KK Tel E-158C.fit 2003-06-25 13:13:28 60 141112.5 686.2 8976.2 2.991 9332.1 2.949 2452816.05136574 KK Tel E-159C.fit 2003-06-25 13:14:35 60 142492.4 687.1 9141.9 2.982 9511.8 2.939 2452816.0521412 KK Tel E-160C.fit 2003-06-25 13:15:42 60 142527.5 685.6 9350.8 2.958 9579.5 2.931 2452816.05291667 KK Tel E-161C.fit 2003-06-25 13:16:48 60 143172.7 684.8 9097.4 2.992 9617.6 2.932 2452816.05368056 KK Tel E-162C.fit 2003-06-25 13:17:55 60 141084.4 677.2 9127.9 2.973 9547.2 2.924 2452816.05445602 KK Tel E-163C.fit 2003-06-25 13:19:02 60 141265.5 679.2 9138.8 2.973 9485.1 2.932 2452816.05523148 KK Tel E-164C.fit 2003-06-25 13:20:09 60 141282.3 685.6 9166.6 2.970 9508.5 2.930 2452816.05600694 KK Tel E-165C.fit 2003-06-25 13:21:16 60 142237.3 680.4 8856.0 3.014 9413.7 2.948 2452816.05678241 KK Tel E-166C.fit 2003-06-25 13:22:22 60 142081.1 680.3 9396.8 2.949 9405.9 2.948 2452816.0575463 KK Tel E-167C.fit 2003-06-25 13:23:29 60 142151.7 677.9 9399.5 2.949 9406.3 2.948 2452816.05832176 KK Tel E-168C.fit 2003-06-25 13:24:36 60 142016.7 679.4 9112.2 2.982 9395.7 2.949 2452816.05909722 KK Tel E-169C.fit 2003-06-25 13:25:43 60 142293.0 677.5 9189.8 2.975 9492.0 2.940 2452816.05987269 KK Tel E-170C.fit 2003-06-25 13:26:50 60 142480.2 676.5 9353.3 2.957 9476.2 2.943 2452816.06064815 KK Tel E-171C.fit 2003-06-25 13:27:57 60 143124.6 672.5 9119.6 2.989 9613.3 2.932 2452816.06142361 KK Tel E-172C.fit 2003-06-25 13:29:03 60 144222.7 670.7 9237.6 2.984 9672.3 2.934 2452816.0621875 KK Tel E-173C.fit 2003-06-25 13:30:10 60 143165.5 663.9 9044.4 2.999 9810.3 2.910 2452816.06296296 KK Tel E-174C.fit 2003-06-25 13:31:17 60 143030.4 669.1 9115.7 2.989 9504.0 2.944 2452816.06373843 KK Tel E-175C.fit 2003-06-25 13:32:24 60 143253.8 661.0 8893.1 3.018 9454.8 2.951 2452816.06451389 KK Tel E-176C.fit 2003-06-25 13:33:31 60 143726.8 664.4 9195.0 2.985 9401.7 2.961 2452816.06528935 KK Tel E-177C.fit 2003-06-25 13:34:38 60 144411.6 665.8 9350.8 2.972 9553.2 2.949 2452816.06606482 KK Tel E-178C.fit 2003-06-25 13:35:44 60 143273.7 659.2 9020.4 3.002 9507.6 2.945 2452816.0668287 KK Tel E-179C.fit 2003-06-25 13:36:51 60 143107.5 657.2 9036.0 2.999 9551.9 2.939 2452816.06760417 KK Tel E-180C.fit 2003-06-25 13:37:58 60 142629.5 652.2 8828.0 3.021 9546.8 2.936 2452816.06837963 KK Tel E-181C.fit 2003-06-25 13:39:05 60 140269.1 655.2 8980.6 2.984 9150.2 2.964 2452816.06915509 KK Tel E-182C.fit 2003-06-25 13:40:12 60 141934.9 650.4 9223.0 2.968 9154.4 2.976 2452816.06993056 KK Tel E-183C.fit 2003-06-25 13:41:18 60 140419.2 653.4 8744.0 3.014 9391.5 2.937 2452816.07069444 KK Tel E-184C.fit 2003-06-25 13:42:25 60 141132.7 646.7 8864.1 3.005 9293.7 2.954 2452816.07146991 KK Tel E-185C.fit 2003-06-25 13:43:32 60 143446.4 638.1 8896.5 3.019 9410.2 2.958 2452816.07224537 KK Tel E-186C.fit 2003-06-25 13:44:39 60 143004.8 640.4 8826.5 3.024 9676.7 2.924 2452816.07302083 KK Tel E-187C.fit 2003-06-25 13:45:46 60 142217.9 637.1 8797.9 3.021 9290.6 2.962 2452816.0737963 KK Tel E-188C.fit 2003-06-25 13:46:53 60 141194.2 634.0 9029.0 2.985 9226.8 2.962 2452816.07457176 KK Tel E-189C.fit 2003-06-25 13:48:00 60 142506.3 633.4 8795.8 3.024 9492.9 2.941 2452816.07534722 KK Tel E-190C.fit 2003-06-25 13:49:07 60 143398.0 631.1 8972.7 3.009 9377.4 2.961 2452816.07612269 KK Tel E-191C.fit 2003-06-25 13:50:14 60 143137.6 627.2 8983.9 3.006 9497.4 2.945 2452816.07689815 KK Tel E-192C.fit 2003-06-25 13:51:21 60 143508.1 629.1 8973.0 3.010 9626.2 2.934 2452816.07767361 KK Tel E-193C.fit 2003-06-25 13:52:28 60 144061.1 624.3 9110.5 2.998 9639.5 2.936 2452816.07844907 KK Tel E-194C.fit 2003-06-25 13:53:35 60 144114.4 627.8 8930.1 3.020 9392.2 2.965 2452816.07922454 KK Tel E-195C.fit 2003-06-25 13:54:42 60 143425.5 628.2 9300.4 2.970 9391.5 2.960 2452816.08 KK Tel E-196C.fit 2003-06-25 13:55:49 60 144596.6 632.0 9165.2 2.995 9626.2 2.942 2452816.08077546 KK Tel E-197C.fit 2003-06-25 13:56:55 60 143289.9 627.8 9494.1 2.947 9377.7 2.960 2452816.08153935 KK Tel E-198C.fit 2003-06-25 13:58:02 60 144708.5 627.2 9291.0 2.981 9702.5 2.934 2452816.08231481 KK Tel E-199C.fit 2003-06-25 13:59:09 60 144345.0 624.7 9472.9 2.957 9732.1 2.928 2452816.08309028 KK Tel E-200C.fit 2003-06-25 14:00:16 60 144646.0 624.8 9551.1 2.951 9613.0 2.944 2452816.08386574 KK Tel E-201C.fit 2003-06-25 14:01:23 60 144306.8 621.0 9558.2 2.947 9894.8 2.910 2452816.0846412 KK Tel E-202C.fit 2003-06-25 14:02:30 60 143993.8 619.7 9718.0 2.927 9875.4 2.909 2452816.08541667 KK Tel E-203C.fit 2003-06-25 14:03:37 60 144979.3 617.1 9903.0 2.914 9963.7 2.907 2452816.08619213 KK Tel E-204C.fit 2003-06-25 14:04:44 60 144877.5 617.8 9917.3 2.912 9696.5 2.936 2452816.08696759 KK Tel E-205C.fit 2003-06-25 14:05:51 60 144730.4 621.5 10011.4 2.900 9760.0 2.928 2452816.08774306 KK Tel E-206C.fit 2003-06-25 14:06:58 60 145290.4 618.8 10143.7 2.890 9808.4 2.927 2452816.08851852 KK Tel E-207C.fit 2003-06-25 14:08:04 60 145223.7 621.1 10236.7 2.880 9827.9 2.924 2452816.08928241 KK Tel E-208C.fit 2003-06-25 14:09:11 60 144913.0 632.0 10118.1 2.890 9587.9 2.948 2452816.09005787 KK Tel E-209C.fit 2003-06-25 14:10:18 60 144787.2 625.8 10177.5 2.883 9662.0 2.939 2452816.09083333 KK Tel E-210C.fit 2003-06-25 14:11:25 60 143841.6 627.1 10353.4 2.857 9418.5 2.960 2452816.0916088 KK Tel E-211C.fit 2003-06-25 14:12:32 60 144343.8 625.1 10265.3 2.870 9511.9 2.953 2452816.09238426 KK Tel E-212C.fit 2003-06-25 14:13:39 60 144467.7 622.1 10091.1 2.890 9599.4 2.944 2452816.09315972 KK Tel E-213C.fit 2003-06-25 14:14:46 60 143636.5 627.5 9959.0 2.898 9580.0 2.940 2452816.09393519 KK Tel E-214C.fit 2003-06-25 14:15:53 60 145278.6 618.7 10158.4 2.888 9810.8 2.926 2452816.09471065 KK Tel E-215C.fit 2003-06-25 14:17:00 60 144894.5 619.2 10428.4 2.857 9699.8 2.936 2452816.09548611 KK Tel E-216C.fit 2003-06-25 14:18:07 60 145637.1 617.1 10356.1 2.870 9368.0 2.979 2452816.09626157 KK Tel E-217C.fit 2003-06-25 14:19:14 60 145808.1 613.9 10615.0 2.845 9614.3 2.952 2452816.09703704 KK Tel E-218C.fit 2003-06-25 14:20:21 60 144496.3 615.0 10650.2 2.831 9543.7 2.950 2452816.0978125 KK Tel E-219C.fit 2003-06-25 14:21:27 60 144057.4 612.9 10435.2 2.850 9361.6 2.968 2452816.09857639 KK Tel E-220C.fit 2003-06-25 14:22:34 60 144530.2 607.5 10631.7 2.833 9711.1 2.932 2452816.09935185 KK Tel E-221C.fit 2003-06-25 14:23:41 60 145896.6 612.5 10597.6 2.847 9686.5 2.945 2452816.10012731 KK Tel E-222C.fit 2003-06-25 14:24:48 60 145970.1 618.3 10848.5 2.822 9591.4 2.956 2452816.10090278 KK Tel E-223C.fit 2003-06-25 14:25:55 60 145120.3 619.5 10619.6 2.839 9697.3 2.938 2452816.10167824 KK Tel E-224C.fit 2003-06-25 14:27:02 60 145744.0 617.8 10857.5 2.820 9548.6 2.959 2452816.1024537 KK Tel E-225C.fit 2003-06-25 14:28:09 60 145305.4 607.5 10762.4 2.826 9708.1 2.938 2452816.10322917 KK Tel E-226C.fit 2003-06-25 14:29:16 60 145529.1 610.5 10849.5 2.819 9625.8 2.949 2452816.10400463 KK Tel E-227C.fit 2003-06-25 14:30:23 60 145932.3 606.5 10953.5 2.811 9728.1 2.940 2452816.10478009 KK Tel E-228C.fit 2003-06-25 14:31:30 60 146079.8 606.7 11089.2 2.799 9806.9 2.933 2452816.10555556 KK Tel E-229C.fit 2003-06-25 14:32:37 60 143606.5 609.4 10747.4 2.815 9568.7 2.941 2452816.10633102 KK Tel E-230C.fit 2003-06-25 14:33:44 60 144619.5 611.0 10668.9 2.830 9729.6 2.930 2452816.10710648 KK Tel E-231C.fit 2003-06-25 14:34:50 60 142737.4 612.7 10598.5 2.823 9516.5 2.940 2452816.10787037 KK Tel E-232C.fit 2003-06-25 14:35:57 60 144509.4 606.0 10660.6 2.830 9645.2 2.939 2452816.10864583 KK Tel E-233C.fit 2003-06-25 14:37:04 60 143590.3 601.4 10599.0 2.830 9601.8 2.937 2452816.1094213 KK Tel E-234C.fit 2003-06-25 14:38:11 60 143720.2 596.3 10362.8 2.855 9686.4 2.928 2452816.11019676 KK Tel E-235C.fit 2003-06-25 14:39:18 60 141805.0 602.7 10535.6 2.823 9601.1 2.923 2452816.11097222 KK Tel E-236C.fit 2003-06-25 14:40:25 60 140454.9 604.4 10090.1 2.859 9448.4 2.930 2452816.11174769 KK Tel E-237C.fit 2003-06-25 14:41:32 60 140288.7 602.3 10069.6 2.860 9397.4 2.935 2452816.11252315 KK Tel E-238C.fit 2003-06-25 14:42:39 60 141244.0 604.9 10092.6 2.865 9279.1 2.956 2452816.11329861 KK Tel E-239C.fit 2003-06-25 14:43:46 60 138778.4 603.1 10049.4 2.850 9169.6 2.950 2452816.11407407 KK Tel E-240C.fit 2003-06-25 14:44:52 60 142532.6 605.4 10242.6 2.859 9242.5 2.970 2452816.11483796 KK Tel E-241C.fit 2003-06-25 14:45:59 60 139975.2 604.2 9959.2 2.870 9527.2 2.918 2452816.11561343 KK Tel E-242C.fit 2003-06-25 14:47:06 60 142433.6 605.2 9756.8 2.911 9490.1 2.941 2452816.11638889 KK Tel E-243C.fit 2003-06-25 14:48:13 60 143193.5 601.8 10077.5 2.881 9548.1 2.940 2452816.11716435 KK Tel E-244C.fit 2003-06-25 14:49:20 60 145100.4 603.7 9864.2 2.919 9597.6 2.949 2452816.11793981 KK Tel E-245C.fit 2003-06-25 14:50:27 60 143128.8 602.9 10085.8 2.880 9337.2 2.964 2452816.11871528 KK Tel E-246C.fit 2003-06-25 14:51:34 60 142310.1 600.9 9956.4 2.888 9545.0 2.934 2452816.11949074 KK Tel E-247C.fit 2003-06-25 14:52:41 60 142597.6 600.6 9761.4 2.911 9566.7 2.933 2452816.1202662 KK Tel E-248C.fit 2003-06-25 14:53:48 60 143186.1 600.5 9803.5 2.911 9422.5 2.954 2452816.12104167 KK Tel E-249C.fit 2003-06-25 14:54:54 60 144404.7 600.8 9711.0 2.931 9774.9 2.924 2452816.12180556 KK Tel E-250C.fit 2003-06-25 14:56:01 60 145133.1 599.2 10039.8 2.900 9458.2 2.965 2452816.12258102 KK Tel E-251C.fit 2003-06-25 14:57:08 60 145192.1 591.3 10209.2 2.882 9491.2 2.962 2452816.12335648 KK Tel E-252C.fit 2003-06-25 14:58:15 60 144381.8 587.2 10117.5 2.886 9491.1 2.955 2452816.12413194 KK Tel E-253C.fit 2003-06-25 14:59:22 60 145157.3 589.7 10177.1 2.886 9675.4 2.940 2452816.12490741 KK Tel E-254C.fit 2003-06-25 15:00:29 60 145786.3 590.4 10107.2 2.898 9900.2 2.920 2452816.12568287 KK Tel E-255C.fit 2003-06-25 15:01:36 60 145607.9 593.2 9983.6 2.910 9821.3 2.928 2452816.12645833 KK Tel E-256C.fit 2003-06-25 15:02:43 60 144731.4 590.0 9929.7 2.909 9661.1 2.939 2452816.1272338 KK Tel E-257C.fit 2003-06-25 15:03:50 60 143763.2 591.5 9979.2 2.896 9487.9 2.951 2452816.12800926 KK Tel E-258C.fit 2003-06-25 15:04:57 60 143670.1 590.9 9683.7 2.928 9428.9 2.957 2452816.12878472 KK Tel E-259C.fit 2003-06-25 15:06:03 60 142650.3 592.5 9619.1 2.928 9429.5 2.949 2452816.12954861 KK Tel E-260C.fit 2003-06-25 15:07:10 60 144523.8 596.7 9688.2 2.934 9837.9 2.918 2452816.13032407 KK Tel E-261C.fit 2003-06-25 15:08:17 60 145494.0 593.2 9917.9 2.916 9745.8 2.935 2452816.13109954 KK Tel E-262C.fit 2003-06-25 15:09:24 60 145182.6 588.1 9715.3 2.936 9576.8 2.952 2452816.131875 KK Tel E-263C.fit 2003-06-25 15:10:31 60 145129.3 586.0 9674.3 2.940 9533.0 2.956 2452816.13265046 KK Tel E-264C.fit 2003-06-25 15:11:38 60 144378.6 589.9 9813.0 2.919 9574.0 2.946 2452816.13342593 KK Tel E-265C.fit 2003-06-25 15:12:45 60 145016.9 592.5 9391.9 2.972 9506.6 2.958 2452816.13420139 KK Tel E-266C.fit 2003-06-25 15:13:52 60 144956.1 590.9 9615.2 2.946 9680.2 2.938 2452816.13497685 KK Tel E-267C.fit 2003-06-25 15:14:59 60 145073.4 592.4 9461.0 2.964 9523.5 2.957 2452816.13575231 KK Tel E-268C.fit 2003-06-25 15:16:06 60 144794.1 594.5 9719.8 2.933 9565.9 2.950 2452816.13652778 KK Tel E-269C.fit 2003-06-25 15:17:13 60 144289.6 595.0 9588.6 2.944 9672.3 2.934 2452816.13730324 KK Tel E-270C.fit 2003-06-25 15:18:19 60 144908.8 589.2 9419.0 2.968 9803.8 2.924 2452816.13806713 KK Tel E-271C.fit 2003-06-25 15:19:26 60 144815.0 592.7 9649.4 2.941 9708.3 2.934 2452816.13884259 KK Tel E-272C.fit 2003-06-25 15:20:33 60 145905.2 589.5 9734.0 2.939 9759.6 2.937 2452816.13961806 KK Tel E-273C.fit 2003-06-25 15:21:40 60 144156.4 587.7 9403.9 2.964 9434.7 2.960 2452816.14039352 KK Tel E-274C.fit 2003-06-25 15:22:47 60 144850.0 585.5 9600.9 2.947 9649.9 2.941 2452816.14116898 KK Tel E-275C.fit 2003-06-25 15:23:54 60 144325.9 589.9 9476.8 2.957 9769.8 2.924 2452816.14194444 KK Tel E-276C.fit 2003-06-25 15:25:01 60 143670.4 595.4 9441.0 2.956 9444.9 2.955 2452816.14271991 KK Tel E-277C.fit 2003-06-25 15:26:08 60 142284.3 595.0 9160.0 2.978 9691.9 2.917 2452816.14349537 KK Tel E-278C.fit 2003-06-25 15:27:15 60 142811.4 592.6 9446.2 2.949 9615.8 2.929 2452816.14427083 KK Tel E-279C.fit 2003-06-25 15:28:21 60 143020.3 591.4 9546.5 2.939 9451.0 2.950 2452816.14503472 KK Tel E-280C.fit 2003-06-25 15:29:28 60 142254.7 589.3 9268.3 2.965 9499.4 2.938 2452816.14581019 KK Tel E-281C.fit 2003-06-25 15:30:35 60 143073.8 585.8 9430.4 2.953 9439.2 2.952 2452816.14658565 KK Tel E-282C.fit 2003-06-25 15:31:42 60 142229.1 595.6 9412.4 2.948 9629.1 2.924 2452816.14736111 KK Tel E-283C.fit 2003-06-25 15:32:49 60 138145.6 592.8 9055.5 2.959 9037.3 2.961 2452816.14813657 KK Tel E-284C.fit 2003-06-25 15:33:56 60 136115.2 597.3 8590.6 3.000 9236.4 2.921 2452816.14891204 KK Tel E-285C.fit 2003-06-25 15:35:03 60 136702.9 595.7 8712.4 2.989 9131.2 2.938 2452816.1496875 KK Tel E-286C.fit 2003-06-25 15:36:10 60 134122.4 592.6 8729.1 2.966 8908.9 2.944 2452816.15046296 KK Tel E-287C.fit 2003-06-25 15:37:17 60 135438.1 591.2 8791.8 2.969 9043.2 2.939 2452816.15123843 KK Tel E-288C.fit 2003-06-25 15:38:24 60 136800.4 591.6 8661.1 2.996 9172.4 2.934 2452816.15201389 KK Tel E-289C.fit 2003-06-25 15:39:30 60 136591.6 591.7 9114.7 2.939 8985.4 2.955 2452816.15277778 KK Tel E-290C.fit 2003-06-25 15:40:37 60 138423.8 587.5 9023.3 2.965 9051.9 2.961 2452816.15355324 KK Tel E-291C.fit 2003-06-25 15:41:44 60 138902.7 586.5 8915.9 2.981 9135.6 2.955 2452816.1543287 KK Tel E-292C.fit 2003-06-25 15:42:51 60 139150.2 586.4 8734.9 3.006 9188.3 2.951 2452816.15510417 KK Tel E-293C.fit 2003-06-25 15:43:58 60 137779.7 588.1 8829.6 2.983 9126.4 2.947 2452816.15587963 KK Tel E-294C.fit 2003-06-25 15:45:05 60 138192.7 588.3 8768.4 2.994 9256.8 2.935 2452816.15665509 KK Tel E-295C.fit 2003-06-25 15:46:12 60 137442.1 594.1 8933.8 2.968 9227.9 2.933 2452816.15743056 KK Tel E-296C.fit 2003-06-25 15:47:19 60 136376.4 590.3 8705.0 2.987 8977.5 2.954 2452816.15820602 KK Tel E-297C.fit 2003-06-25 15:48:26 60 137000.6 588.6 8754.3 2.986 9128.4 2.941 2452816.15898148 KK Tel E-298C.fit 2003-06-25 15:49:33 60 138191.2 588.9 8771.7 2.993 9261.9 2.934 2452816.15975694 KK Tel E-299C.fit 2003-06-25 15:50:40 60 138821.2 593.0 8841.2 2.990 9368.4 2.927 2452816.16053241 KK Tel E-300C.fit 2003-06-25 15:51:46 60 137503.8 593.7 8656.5 3.002 9313.4 2.923 2452816.1612963 KK Tel E-301C.fit 2003-06-25 15:52:53 60 137431.9 599.7 8514.9 3.020 9200.2 2.936 2452816.16207176 KK Tel E-302C.fit 2003-06-25 15:54:00 60 135643.6 597.1 8852.5 2.963 8900.4 2.957 2452816.16284722 KK Tel E-303C.fit 2003-06-25 15:55:07 60 132276.7 593.6 8602.6 2.967 8777.2 2.945 2452816.16362269 KK Tel E-304C.fit 2003-06-25 15:56:14 60 129797.1 590.9 8189.5 3.000 8663.8 2.939 2452816.16439815 KK Tel E-305C.fit 2003-06-25 15:57:21 60 128741.7 596.1 8167.5 2.994 8682.9 2.928 2452816.16517361 KK Tel E-306C.fit 2003-06-25 15:58:28 60 128228.5 602.4 8212.1 2.984 8437.0 2.954 2452816.16594907 KK Tel E-308C.fit 2003-06-25 16:00:42 60 124786.1 600.3 8103.4 2.969 8382.3 2.932 2452816.1675 KK Tel E-309C.fit 2003-06-25 16:01:49 60 124238.3 597.8 8151.9 2.957 8124.0 2.961 2452816.16827546 KK Tel E-310C.fit 2003-06-25 16:02:56 60 121945.4 599.7 8100.3 2.944 8163.7 2.936 2452816.16905093 KK Tel E-311C.fit 2003-06-25 16:04:03 60 119903.6 600.2 8142.7 2.920 8159.0 2.918 2452816.16982639 KK Tel E-312C.fit 2003-06-25 16:05:09 60 118900.1 594.7 8133.8 2.912 7803.1 2.957 2452816.17059028 KK Tel E-313C.fit 2003-06-25 16:06:16 60 117736.3 589.0 8197.4 2.893 7808.1 2.946 2452816.17136574 KK Tel E-314C.fit 2003-06-25 16:07:23 60 117850.2 590.5 8212.0 2.892 7767.8 2.953 2452816.1721412 KK Tel E-315C.fit 2003-06-25 16:08:30 60 117774.4 594.6 8286.9 2.882 7895.0 2.934 2452816.17291667 KK Tel E-316C.fit 2003-06-25 16:09:37 60 113979.2 593.4 7976.7 2.888 7611.5 2.938 2452816.17369213 KK Tel E-317C.fit 2003-06-25 16:10:44 60 110835.4 590.8 7931.2 2.863 7369.2 2.943 2452816.17446759 KK Tel E-318C.fit 2003-06-25 16:11:51 60 109403.5 590.7 7683.3 2.884 7300.9 2.939 2452816.17524306 KK Tel E-319C.fit 2003-06-25 16:12:58 60 106618.1 590.6 7505.8 2.881 7115.1 2.939 2452816.17601852 KK Tel E-320C.fit 2003-06-25 16:14:05 60 103748.0 593.4 7465.9 2.857 6976.5 2.931 2452816.17679398 KK Tel E-321C.fit 2003-06-25 16:15:12 60 102292.7 590.8 7258.1 2.873 6872.9 2.932 2452816.17756944 KK Tel E-322C.fit 2003-06-25 16:16:18 60 98919.3 589.4 7120.2 2.857 6504.4 2.955 2452816.17833333 KK Tel E-323C.fit 2003-06-25 16:17:25 60 97471.8 587.3 6951.0 2.867 6710.0 2.905 2452816.1791088 KK Tel E-324C.fit 2003-06-25 16:18:32 60 94097.5 584.8 6488.8 2.904 6405.0 2.918 2452816.17988426 KK Tel E-325C.fit 2003-06-25 16:19:39 60 90753.4 590.6 6694.4 2.830 6187.0 2.916 2452816.18065972 KK Tel E-326C.fit 2003-06-25 16:20:46 60 87765.8 594.1 6401.1 2.843 5736.7 2.962 2452816.18143519 KK Tel E-327C.fit 2003-06-25 16:21:53 60 87734.9 590.2 6212.8 2.875 5862.6 2.938 2452816.18221065 KK Tel E-328C.fit 2003-06-25 16:23:00 60 84669.1 590.9 5921.0 2.888 5633.4 2.942 2452816.18298611 KK Tel E-329C.fit 2003-06-25 16:24:06 60 83238.3 587.5 6141.7 2.830 5779.4 2.896 2452816.18375 KK Tel E-330C.fit 2003-06-25 16:25:13 60 82931.7 586.9 5878.2 2.874 5602.1 2.926 2452816.18452546 KK Tel E-331C.fit 2003-06-25 16:26:20 60 84040.6 590.6 6039.4 2.859 5648.2 2.931 2452816.18530093 KK Tel E-332C.fit 2003-06-25 16:27:26 60 83224.9 588.6 5906.7 2.872 5650.1 2.921 2452816.18606481 KK Tel E-333C.fit 2003-06-25 16:28:33 60 82756.1 591.6 6092.6 2.832 5514.1 2.941 2452816.18684028 KK Tel E-334C.fit 2003-06-25 16:29:40 60 80942.4 590.4 6243.4 2.782 5446.9 2.930 2452816.18761574 KK Tel E-335C.fit 2003-06-25 16:30:47 60 81001.6 593.0 6186.8 2.793 5356.6 2.949 2452816.1883912 KK Tel E-336C.fit 2003-06-25 16:31:53 60 78927.4 589.2 5831.4 2.829 4977.7 3.000 2452816.18915509 KK Tel E-337C.fit 2003-06-25 16:33:00 60 79724.3 591.3 5832.7 2.839 5134.0 2.978 2452816.18993056 KK Tel W-001C.fit 2003-06-25 16:40:26 60 82514.3 844.7 5956.6 2.854 5279.3 2.985 2452816.19509259 KK Tel W-002C.fit 2003-06-25 16:41:33 60 83833.1 801.9 5958.2 2.871 5422.0 2.973 2452816.19586806 KK Tel W-003C.fit 2003-06-25 16:42:40 60 83558.7 768.4 6118.7 2.838 5525.0 2.949 2452816.19664352 KK Tel W-004C.fit 2003-06-25 16:43:47 60 84506.2 697.6 5840.5 2.901 5497.9 2.967 2452816.19741898 KK Tel W-005C.fit 2003-06-25 16:44:53 60 85688.1 591.8 6292.8 2.835 5614.1 2.959 2452816.19818287 KK Tel W-006C.fit 2003-06-25 16:46:00 60 85423.0 588.7 6137.6 2.859 5414.4 2.995 2452816.19895833 KK Tel W-007C.fit 2003-06-25 16:47:07 60 87248.6 588.4 6035.5 2.900 5548.9 2.991 2452816.1997338 KK Tel W-008C.fit 2003-06-25 16:48:13 60 87693.3 591.6 6148.2 2.886 5698.4 2.968 2452816.20049769 KK Tel W-009C.fit 2003-06-25 16:49:20 60 89227.6 590.9 6401.3 2.861 5801.2 2.967 2452816.20127315 KK Tel W-010C.fit 2003-06-25 16:50:27 60 89252.7 590.6 6090.2 2.915 5953.5 2.940 2452816.20204861 KK Tel W-011C.fit 2003-06-25 16:51:33 60 90874.2 592.1 6202.8 2.915 6040.2 2.943 2452816.2028125 KK Tel W-012C.fit 2003-06-25 16:52:40 60 92562.3 588.8 6246.4 2.927 6101.4 2.953 2452816.20358796 KK Tel W-013C.fit 2003-06-25 16:53:47 60 94827.9 589.7 6310.5 2.942 5974.7 3.002 2452816.20436343 KK Tel W-014C.fit 2003-06-25 16:54:53 60 95242.6 588.6 6484.4 2.917 6242.5 2.959 2452816.20512731 KK Tel W-015C.fit 2003-06-25 16:56:00 60 96178.2 591.2 6689.7 2.894 6284.4 2.962 2452816.20590278 KK Tel W-016C.fit 2003-06-25 16:57:07 60 97941.2 592.5 6566.2 2.934 6425.6 2.958 2452816.20667824 KK Tel W-017C.fit 2003-06-25 16:58:13 60 99569.7 596.3 6682.4 2.933 6736.5 2.924 2452816.20744213 KK Tel W-018C.fit 2003-06-25 16:59:20 60 101004.1 594.8 6879.4 2.917 6606.3 2.961 2452816.20821759 KK Tel W-019C.fit 2003-06-25 17:00:27 60 101975.4 591.8 6845.9 2.933 6775.8 2.944 2452816.20899306 KK Tel W-020C.fit 2003-06-25 17:01:33 60 102649.6 590.4 7033.8 2.910 6923.8 2.928 2452816.20975694 KK Tel W-021C.fit 2003-06-25 17:02:40 60 102429.2 586.5 6995.6 2.914 6715.8 2.958 2452816.21053241 KK Tel W-022C.fit 2003-06-25 17:03:47 60 104651.6 586.9 6865.4 2.958 6693.9 2.985 2452816.21130787 KK Tel W-023C.fit 2003-06-25 17:04:53 60 105483.8 588.8 6967.7 2.950 7103.7 2.929 2452816.21207176 KK Tel W-024C.fit 2003-06-25 17:06:00 60 106499.9 592.1 7382.0 2.898 7303.8 2.909 2452816.21284722 KK Tel W-025C.fit 2003-06-25 17:07:07 60 106875.2 593.8 7208.4 2.928 6967.4 2.965 2452816.21362269 KK Tel W-027C.fit 2003-06-25 17:09:20 60 107165.0 597.5 7116.0 2.945 7101.7 2.947 2452816.21516204 KK Tel W-028C.fit 2003-06-25 17:10:27 60 106817.5 598.4 7198.0 2.929 7093.7 2.944 2452816.2159375 KK Tel W-029C.fit 2003-06-25 17:11:34 60 107486.2 599.3 7087.0 2.952 7107.8 2.949 2452816.21671296 KK Tel W-030C.fit 2003-06-25 17:12:40 60 107708.7 600.9 6838.5 2.993 7133.7 2.947 2452816.21747685 KK Tel W-031C.fit 2003-06-25 17:13:47 60 107666.5 600.1 7274.1 2.926 7200.1 2.937 2452816.21825231 KK Tel W-032C.fit 2003-06-25 17:14:54 60 108245.7 601.8 7067.5 2.963 7169.1 2.947 2452816.21902778 KK Tel W-033C.fit 2003-06-25 17:16:01 60 108082.7 596.4 6876.5 2.991 7059.1 2.963 2452816.21980324 KK Tel W-034C.fit 2003-06-25 17:17:07 60 108760.9 601.5 7157.7 2.954 7088.1 2.965 2452816.22056713 KK Tel W-035C.fit 2003-06-25 17:18:14 60 109102.8 600.9 7163.6 2.957 7098.2 2.967 2452816.22134259 KK Tel W-036C.fit 2003-06-25 17:19:21 60 108190.7 601.9 7212.4 2.940 7272.6 2.931 2452816.22211806 KK Tel W-037C.fit 2003-06-25 17:20:27 60 108856.2 601.6 7151.7 2.956 7280.3 2.937 2452816.22288194 KK Tel W-038C.fit 2003-06-25 17:21:34 60 108907.8 603.0 7322.8 2.931 7340.5 2.928 2452816.22365741 KK Tel W-039C.fit 2003-06-25 17:22:41 60 109352.5 606.6 7080.4 2.972 6995.4 2.985 2452816.22443287 KK Tel W-040C.fit 2003-06-25 17:23:47 60 109467.7 607.6 7357.2 2.931 7272.7 2.944 2452816.22519676 KK Tel W-041C.fit 2003-06-25 17:24:54 60 110195.8 602.1 7174.9 2.966 7451.0 2.925 2452816.22597222 KK Tel W-042C.fit 2003-06-25 17:26:01 60 111019.2 602.5 7210.0 2.969 7347.9 2.948 2452816.22674769 KK Tel W-043C.fit 2003-06-25 17:27:07 60 111356.9 601.2 7381.8 2.946 7340.5 2.952 2452816.22751157 KK Tel W-044C.fit 2003-06-25 17:28:14 60 111164.5 601.0 7133.8 2.982 7303.2 2.956 2452816.22828704 KK Tel W-045C.fit 2003-06-25 17:29:21 60 111796.1 603.6 6916.9 3.021 7262.5 2.968 2452816.2290625 KK Tel W-046C.fit 2003-06-25 17:30:28 60 113003.8 602.8 7417.6 2.957 7382.9 2.962 2452816.22983796 KK Tel W-047C.fit 2003-06-25 17:31:34 60 113381.4 600.9 7406.8 2.962 7464.2 2.954 2452816.23060185 KK Tel W-048C.fit 2003-06-25 17:32:41 60 115640.4 600.7 7390.6 2.986 7518.0 2.968 2452816.23137731 KK Tel W-049C.fit 2003-06-25 17:33:48 60 115190.8 598.6 7529.5 2.962 7529.4 2.962 2452816.23215278 KK Tel W-050C.fit 2003-06-25 17:34:54 60 116724.4 596.4 7648.6 2.959 7699.7 2.952 2452816.23291667 KK Tel W-051C.fit 2003-06-25 17:36:01 60 117633.3 599.1 7499.3 2.989 7685.9 2.962 2452816.23369213 KK Tel W-052C.fit 2003-06-25 17:37:08 60 117771.3 591.5 7697.7 2.962 7950.0 2.927 2452816.23446759 KK Tel W-053C.fit 2003-06-25 17:38:15 60 117993.7 588.4 7615.5 2.975 7793.6 2.950 2452816.23524306 KK Tel W-054C.fit 2003-06-25 17:39:21 60 119395.6 591.4 7793.1 2.963 7833.8 2.958 2452816.23600694 KK Tel W-055C.fit 2003-06-25 17:40:28 60 120246.4 594.2 7721.1 2.981 7999.4 2.943 2452816.23678241 KK Tel W-056C.fit 2003-06-25 17:41:34 60 119308.3 600.8 7617.3 2.987 7910.5 2.946 2452816.2375463 KK Tel W-057C.fit 2003-06-25 17:42:41 60 122384.2 601.8 8293.3 2.922 7942.0 2.969 2452816.23832176 KK Tel W-058C.fit 2003-06-25 17:43:48 60 122214.1 602.5 7831.5 2.983 8213.2 2.932 2452816.23909722 KK Tel W-059C.fit 2003-06-25 17:44:55 60 123249.4 603.1 7759.4 3.002 8212.1 2.941 2452816.23987269 KK Tel W-060C.fit 2003-06-25 17:46:01 60 122994.3 606.2 7863.3 2.986 8020.5 2.964 2452816.24063657 KK Tel W-061C.fit 2003-06-25 17:47:08 60 124487.5 602.6 8039.7 2.975 8147.3 2.960 2452816.24141204 KK Tel W-062C.fit 2003-06-25 17:48:15 60 124336.3 609.9 8167.4 2.956 8219.3 2.949 2452816.2421875 KK Tel W-063C.fit 2003-06-25 17:49:21 60 124542.3 609.4 7571.2 3.040 8119.2 2.965 2452816.24295139 KK Tel W-064C.fit 2003-06-25 17:50:28 60 124789.1 613.7 7821.6 3.007 8184.7 2.958 2452816.24372685 KK Tel W-065C.fit 2003-06-25 17:51:35 60 126564.9 618.5 8077.0 2.988 8564.6 2.924 2452816.24450231 KK Tel W-066C.fit 2003-06-25 17:52:41 60 127146.3 616.5 7935.6 3.012 8596.3 2.925 2452816.2452662 KK Tel W-067C.fit 2003-06-25 17:53:48 60 127567.6 624.7 8131.3 2.989 8583.3 2.930 2452816.24604167 KK Tel W-068C.fit 2003-06-25 17:54:55 60 127297.5 626.5 8212.6 2.976 8249.2 2.971 2452816.24681713 KK Tel W-069C.fit 2003-06-25 17:56:02 60 128731.5 635.9 7966.2 3.021 8537.4 2.946 2452816.24759259 KK Tel W-070C.fit 2003-06-25 17:57:08 60 128775.6 629.2 8238.3 2.985 8519.6 2.949 2452816.24835648 KK Tel W-071C.fit 2003-06-25 17:58:15 60 130379.9 630.6 8135.0 3.012 8742.1 2.934 2452816.24913194 KK Tel W-072C.fit 2003-06-25 17:59:22 60 130843.4 639.9 8104.2 3.020 8664.2 2.948 2452816.24990741 KK Tel W-073C.fit 2003-06-25 18:00:29 60 131561.4 644.9 8213.2 3.012 8567.7 2.966 2452816.25068287 KK Tel W-074C.fit 2003-06-25 18:01:35 60 130934.9 642.2 8213.4 3.006 8760.3 2.936 2452816.25144676 KK Tel W-075C.fit 2003-06-25 18:02:42 60 131816.1 642.5 8287.5 3.004 8446.0 2.983 2452816.25222222 KK Tel W-076C.fit 2003-06-25 18:03:49 60 131420.1 648.5 8285.4 3.001 8903.3 2.923 2452816.25299769 KK Tel W-077C.fit 2003-06-25 18:04:56 60 131379.0 647.7 8342.4 2.993 8449.8 2.979 2452816.25377315 KK Tel W-078C.fit 2003-06-25 18:06:02 60 132933.6 643.5 8220.8 3.022 8832.8 2.944 2452816.25453704 KK Tel W-079C.fit 2003-06-25 18:07:09 60 132479.7 646.9 8624.2 2.966 8937.1 2.927 2452816.2553125 KK Tel W-080C.fit 2003-06-25 18:08:16 60 133238.9 646.5 8755.9 2.956 8874.9 2.941 2452816.25608796 KK Tel W-081C.fit 2003-06-25 18:09:22 60 133429.7 652.3 8539.8 2.985 9104.7 2.915 2452816.25685185 KK Tel W-082C.fit 2003-06-25 18:10:29 60 134074.9 642.4 8788.7 2.959 8775.9 2.960 2452816.25762731 KK Tel W-083C.fit 2003-06-25 18:11:36 60 134550.9 639.1 9150.4 2.919 9121.0 2.922 2452816.25840278 KK Tel W-084C.fit 2003-06-25 18:12:42 60 134150.6 642.5 8972.4 2.937 8920.1 2.943 2452816.25916667 KK Tel W-085C.fit 2003-06-25 18:13:49 60 133169.0 642.6 9135.5 2.909 8831.0 2.946 2452816.25994213 KK Tel W-086C.fit 2003-06-25 18:14:56 60 134089.1 643.8 9370.7 2.889 8860.2 2.950 2452816.26071759 KK Tel W-087C.fit 2003-06-25 18:16:02 60 136028.5 641.8 9326.3 2.910 9167.7 2.928 2452816.26148148 KK Tel W-088C.fit 2003-06-25 18:17:09 60 136356.3 640.8 9650.7 2.875 9037.9 2.947 2452816.26225694 KK Tel W-089C.fit 2003-06-25 18:18:16 60 136305.5 642.7 9769.2 2.862 8950.7 2.957 2452816.26303241 KK Tel W-090C.fit 2003-06-25 18:19:22 60 136449.7 647.6 9545.8 2.888 9124.8 2.937 2452816.2637963 KK Tel W-091C.fit 2003-06-25 18:20:29 60 137209.8 653.4 9682.9 2.878 9190.9 2.935 2452816.26457176 KK Tel W-092C.fit 2003-06-25 18:21:36 60 137313.4 660.3 10135.9 2.830 9052.1 2.952 2452816.26534722 KK Tel W-093C.fit 2003-06-25 18:22:43 60 137253.8 661.2 9859.3 2.859 9005.2 2.958 2452816.26612269 KK Tel W-094C.fit 2003-06-25 18:23:49 60 138493.8 644.9 10012.8 2.852 9262.0 2.937 2452816.26688657 KK Tel W-095C.fit 2003-06-25 18:24:56 60 137728.3 643.6 9879.4 2.861 9013.3 2.960 2452816.26766204 KK Tel W-096C.fit 2003-06-25 18:26:03 60 138129.5 654.8 9696.9 2.884 9261.0 2.934 2452816.2684375 KK Tel W-097C.fit 2003-06-25 18:27:09 60 138408.7 660.9 10012.6 2.852 9313.4 2.930 2452816.26920139 KK Tel W-098C.fit 2003-06-25 18:28:16 60 138145.0 666.9 9807.5 2.872 9130.0 2.950 2452816.26997685 KK Tel W-099C.fit 2003-06-25 18:29:22 60 138954.0 665.7 10114.3 2.845 9345.1 2.931 2452816.27074074 KK Tel W-100C.fit 2003-06-25 18:30:29 60 138954.0 664.9 10126.7 2.844 9445.2 2.919 2452816.2715162 KK Tel W-101C.fit 2003-06-25 18:31:36 60 138703.2 665.4 10121.6 2.842 8998.9 2.970 2452816.27229167 KK Tel W-102C.fit 2003-06-25 18:32:42 60 137803.7 666.6 10183.4 2.828 9206.9 2.938 2452816.27305556 KK Tel W-103C.fit 2003-06-25 18:33:49 60 138636.9 660.6 10096.5 2.844 9443.4 2.917 2452816.27383102 KK Tel W-104C.fit 2003-06-25 18:34:56 60 138761.2 664.4 10135.4 2.841 9453.5 2.917 2452816.27460648 KK Tel W-105C.fit 2003-06-25 18:36:02 60 138495.0 673.0 10130.6 2.840 9261.2 2.937 2452816.27537037 KK Tel W-106C.fit 2003-06-25 18:37:09 60 137470.9 678.3 10194.3 2.825 8904.0 2.972 2452816.27614583 KK Tel W-107C.fit 2003-06-25 18:38:16 60 137960.1 669.6 10256.4 2.822 9028.3 2.960 2452816.2769213 KK Tel W-108C.fit 2003-06-25 18:39:22 60 137124.1 666.9 9951.8 2.848 9152.5 2.939 2452816.27768519 KK Tel W-109C.fit 2003-06-25 18:40:29 60 137662.4 666.4 10236.9 2.822 9222.3 2.935 2452816.27846065 KK Tel W-110C.fit 2003-06-25 18:41:36 60 138285.6 665.1 10133.9 2.838 9281.3 2.933 2452816.27923611 KK Tel W-111C.fit 2003-06-25 18:42:42 60 137622.5 667.9 10335.6 2.811 8993.0 2.962 2452816.28 KK Tel W-112C.fit 2003-06-25 18:43:49 60 136617.4 672.0 10356.6 2.801 9071.3 2.945 2452816.28077546 KK Tel W-113C.fit 2003-06-25 18:44:56 60 138666.4 667.1 10260.0 2.827 9357.7 2.927 2452816.28155093 KK Tel W-114C.fit 2003-06-25 18:46:03 60 136484.8 666.7 10180.6 2.818 9197.8 2.929 2452816.28232639 KK Tel W-115C.fit 2003-06-25 18:47:09 60 137818.3 672.5 10145.5 2.833 9214.4 2.937 2452816.28309028 KK Tel W-116C.fit 2003-06-25 18:48:16 60 139209.5 677.6 10255.8 2.832 9510.1 2.914 2452816.28386574 KK Tel W-117C.fit 2003-06-25 18:49:23 60 139459.6 680.2 10147.1 2.845 9363.6 2.933 2452816.2846412 KK Tel W-118C.fit 2003-06-25 18:50:29 60 139383.4 675.8 9970.7 2.864 9318.7 2.937 2452816.28540509 KK Tel W-119C.fit 2003-06-25 18:51:36 60 140467.1 678.5 9958.7 2.873 9309.1 2.947 2452816.28618056 KK Tel W-120C.fit 2003-06-25 18:52:43 60 138823.4 690.2 9792.1 2.879 9214.7 2.945 2452816.28695602 KK Tel W-121C.fit 2003-06-25 18:53:49 60 142121.1 684.2 10405.7 2.838 9507.6 2.936 2452816.28771991 KK Tel W-122C.fit 2003-06-25 18:54:56 60 140137.0 683.0 9893.4 2.878 9465.4 2.926 2452816.28849537 KK Tel W-123C.fit 2003-06-25 18:56:03 60 142022.1 680.8 9861.3 2.896 9403.7 2.948 2452816.28927083 KK Tel W-124C.fit 2003-06-25 18:57:09 60 142949.4 688.0 9872.0 2.902 9263.1 2.971 2452816.29003472 KK Tel W-125C.fit 2003-06-25 18:58:16 60 143429.1 690.5 9884.3 2.904 9618.0 2.934 2452816.29081019 KK Tel W-126C.fit 2003-06-25 18:59:23 60 142690.7 693.1 9834.0 2.904 9617.0 2.928 2452816.29158565 KK Tel W-127C.fit 2003-06-25 19:00:29 60 143398.4 689.1 9991.3 2.892 9425.5 2.956 2452816.29234954 KK Tel W-128C.fit 2003-06-25 19:01:36 60 143226.4 683.4 10006.7 2.889 9738.8 2.919 2452816.293125 KK Tel W-129C.fit 2003-06-25 19:02:43 60 142800.7 682.5 9914.2 2.896 9460.1 2.947 2452816.29390046 KK Tel W-130C.fit 2003-06-25 19:03:49 60 142423.4 682.6 9747.4 2.912 9304.2 2.962 2452816.29466435 KK Tel W-131C.fit 2003-06-25 19:04:56 60 141934.5 684.9 9716.6 2.911 9385.7 2.949 2452816.29543981 KK Tel W-132C.fit 2003-06-25 19:06:03 60 142547.7 689.6 9881.3 2.898 9595.4 2.930 2452816.29621528 KK Tel W-133C.fit 2003-06-25 19:07:09 60 142601.8 690.4 9876.0 2.899 9360.0 2.957 2452816.29697917 KK Tel W-134C.fit 2003-06-25 19:08:16 60 142909.6 698.3 9860.4 2.903 9590.0 2.933 2452816.29775463 KK Tel W-135C.fit 2003-06-25 19:09:23 60 143374.1 706.9 9938.2 2.898 9390.0 2.960 2452816.29853009 KK Tel W-136C.fit 2003-06-25 19:10:29 60 143104.3 696.3 10053.9 2.883 9435.3 2.952 2452816.29929398 KK Tel W-137C.fit 2003-06-25 19:11:36 60 143120.0 693.4 9754.3 2.916 9482.9 2.947 2452816.30006944 KK Tel W-138C.fit 2003-06-25 19:12:43 60 142329.2 693.8 9752.0 2.911 9399.5 2.950 2452816.30084491 KK Tel W-139C.fit 2003-06-25 19:13:49 60 141998.9 695.4 9628.9 2.922 9389.6 2.949 2452816.3016088 KK Tel W-140C.fit 2003-06-25 19:14:56 60 141215.3 706.9 9558.0 2.924 9430.9 2.938 2452816.30238426 KK Tel W-141C.fit 2003-06-25 19:16:03 60 142223.2 713.9 9491.2 2.939 9300.8 2.961 2452816.30315972 KK Tel W-142C.fit 2003-06-25 19:17:09 60 142281.2 715.8 9684.1 2.918 9378.5 2.953 2452816.30392361 KK Tel W-143C.fit 2003-06-25 19:18:16 60 142177.4 717.5 9689.8 2.916 9622.1 2.924 2452816.30469907 KK Tel W-144C.fit 2003-06-25 19:19:23 60 141172.7 717.0 9378.6 2.944 9393.2 2.942 2452816.30547454 KK Tel W-145C.fit 2003-06-25 19:20:30 60 141940.0 716.8 9330.7 2.955 9563.4 2.929 2452816.30625 KK Tel W-146C.fit 2003-06-25 19:21:36 60 142197.8 726.8 9346.5 2.956 9613.6 2.925 2452816.30701389 KK Tel W-147C.fit 2003-06-25 19:22:43 60 142217.1 741.1 9188.0 2.974 9227.8 2.970 2452816.30778935 KK Tel W-148C.fit 2003-06-25 19:23:50 60 140120.5 747.5 9258.1 2.950 9074.0 2.972 2452816.30856481 KK Tel W-149C.fit 2003-06-25 19:24:56 60 139922.5 755.6 9046.4 2.974 9464.9 2.924 2452816.3093287 KK Tel W-150C.fit 2003-06-25 19:26:03 60 140188.2 763.0 9146.6 2.964 9272.8 2.949 2452816.31010417 KK Tel W-151C.fit 2003-06-25 19:27:09 60 140749.9 758.6 9102.2 2.973 9386.3 2.940 2452816.31086806 KK Tel W-152C.fit 2003-06-25 19:28:16 60 140716.5 758.1 9066.4 2.977 9275.1 2.953 2452816.31164352 KK Tel W-153C.fit 2003-06-25 19:29:23 60 140616.4 756.6 9003.0 2.984 9261.2 2.953 2452816.31241898 KK Tel W-154C.fit 2003-06-25 19:30:29 60 140139.4 759.8 8931.4 2.989 9558.4 2.915 2452816.31318287 KK Tel W-155C.fit 2003-06-25 19:31:36 60 141054.9 753.3 9048.5 2.982 9472.9 2.932 2452816.31395833 KK Tel W-156C.fit 2003-06-25 19:32:43 60 140276.8 753.5 8963.2 2.986 9529.9 2.920 2452816.3147338 KK Tel W-157C.fit 2003-06-25 19:33:49 60 140338.5 760.6 9025.3 2.979 9423.6 2.932 2452816.31549769 KK Tel W-158C.fit 2003-06-25 19:34:56 60 139089.3 763.4 8813.3 2.995 9240.1 2.944 2452816.31627315 KK Tel W-159C.fit 2003-06-25 19:36:03 60 138924.4 769.6 9148.9 2.954 9145.1 2.954 2452816.31704861 KK Tel W-160C.fit 2003-06-25 19:37:10 60 138506.8 770.0 8913.3 2.979 9320.9 2.930 2452816.31782407 KK Tel W-161C.fit 2003-06-25 19:38:16 60 139106.0 771.6 8951.3 2.979 9256.5 2.942 2452816.31858796 KK Tel W-162C.fit 2003-06-25 19:39:23 60 139116.0 780.4 9305.4 2.937 9318.8 2.935 2452816.31936343 KK Tel W-163C.fit 2003-06-25 19:40:30 60 139554.3 784.6 9101.5 2.964 9283.2 2.943 2452816.32013889 KK Tel W-164C.fit 2003-06-25 19:41:36 60 139620.0 794.8 9069.8 2.968 9355.9 2.935 2452816.32090278 KK Tel W-165C.fit 2003-06-25 19:42:43 60 138982.4 795.4 8891.4 2.985 9133.5 2.956 2452816.32167824 KK Tel W-166C.fit 2003-06-25 19:43:50 60 140328.1 802.0 8993.3 2.983 9227.0 2.955 2452816.3224537 KK Tel W-167C.fit 2003-06-25 19:44:57 60 138077.5 800.2 9021.3 2.962 9359.9 2.922 2452816.32322917 KK Tel W-168C.fit 2003-06-25 19:46:03 60 138039.7 792.0 8815.2 2.987 9010.5 2.963 2452816.32399306 KK Tel W-169C.fit 2003-06-25 19:47:10 60 137772.8 787.4 8773.7 2.990 9207.6 2.938 2452816.32476852 KK Tel W-170C.fit 2003-06-25 19:48:17 60 137981.3 789.1 8781.4 2.991 9278.4 2.931 2452816.32554398 KK Tel W-171C.fit 2003-06-25 19:49:23 60 138670.0 793.0 8668.0 3.010 9443.3 2.917 2452816.32630787 KK Tel W-172C.fit 2003-06-25 19:50:30 60 138067.0 803.3 8793.8 2.990 9350.5 2.923 2452816.32708333 KK Tel W-173C.fit 2003-06-25 19:51:37 60 139393.9 813.2 8837.9 2.995 9280.9 2.942 2452816.3278588 KK Tel W-174C.fit 2003-06-25 19:52:43 60 138119.4 805.7 8723.6 2.999 9217.4 2.939 2452816.32862269 KK Tel W-175C.fit 2003-06-25 19:53:50 60 137833.3 809.5 8883.2 2.977 9204.7 2.938 2452816.32939815 KK Tel W-176C.fit 2003-06-25 19:54:57 60 137467.1 811.7 8519.8 3.019 9218.9 2.934 2452816.33017361 KK Tel W-177C.fit 2003-06-25 19:56:04 60 138283.6 823.2 8628.5 3.012 9020.2 2.964 2452816.33094907 KK Tel W-178C.fit 2003-06-25 19:57:10 60 138355.3 825.0 8410.0 3.040 8896.1 2.979 2452816.33171296 KK Tel W-179C.fit 2003-06-25 19:58:17 60 138157.0 827.4 8648.2 3.009 9379.3 2.921 2452816.33248843 KK Tel W-180C.fit 2003-06-25 19:59:24 60 139589.6 829.9 8513.2 3.037 9202.9 2.952 2452816.33326389 KK Tel W-181C.fit 2003-06-25 20:00:30 60 139166.8 828.7 8643.2 3.017 9016.6 2.971 2452816.33402778 KK Tel W-182C.fit 2003-06-25 20:01:37 60 138458.9 830.5 8879.8 2.982 9161.0 2.948 2452816.33480324 KK Tel W-183C.fit 2003-06-25 20:02:44 60 138386.9 835.8 8711.1 3.003 9109.1 2.954 2452816.3355787 KK Tel W-184C.fit 2003-06-25 20:03:50 60 137065.0 843.3 8477.1 3.022 8907.4 2.968 2452816.33634259 KK Tel W-185C.fit 2003-06-25 20:04:57 60 137608.9 852.7 8526.0 3.020 9245.8 2.932 2452816.33711806 KK Tel W-186C.fit 2003-06-25 20:06:04 60 137786.4 852.1 8712.0 2.998 9248.6 2.933 2452816.33789352 KK Tel W-187C.fit 2003-06-25 20:07:10 60 137102.1 860.1 8599.4 3.006 8923.6 2.966 2452816.33865741 KK Tel W-188C.fit 2003-06-25 20:08:17 60 137496.1 864.4 8471.5 3.026 8932.4 2.968 2452816.33943287 KK Tel W-189C.fit 2003-06-25 20:09:24 60 138492.4 861.7 8618.4 3.015 9207.7 2.943 2452816.34020833 KK Tel W-190C.fit 2003-06-25 20:10:30 60 136899.0 866.8 8497.9 3.018 9032.6 2.951 2452816.34097222 KK Tel W-191C.fit 2003-06-25 20:11:37 60 136283.6 872.6 8412.5 3.024 8813.0 2.973 2452816.34174769 KK Tel W-192C.fit 2003-06-25 20:12:44 60 134883.6 873.8 8437.3 3.009 9221.4 2.913 2452816.34252315 KK Tel W-193C.fit 2003-06-25 20:13:50 60 132894.9 874.3 8437.0 2.993 8674.9 2.963 2452816.34328704 KK Tel W-194C.fit 2003-06-25 20:14:57 60 130000.1 887.3 8557.4 2.954 8406.5 2.973 2452816.3440625 KK Tel W-195C.fit 2003-06-25 20:16:04 60 127775.6 893.3 8351.2 2.962 8339.5 2.963 2452816.34483796 KK Tel W-196C.fit 2003-06-25 20:17:10 60 124976.6 897.9 8160.0 2.963 8158.0 2.963 2452816.34560185 KK Tel W-197C.fit 2003-06-25 20:18:17 60 122439.3 906.6 7938.6 2.970 8169.1 2.939 2452816.34637732 KK Tel W-198C.fit 2003-06-25 20:19:24 60 121196.7 917.6 7855.6 2.971 8195.4 2.925 2452816.34715278 KK Tel W-199C.fit 2003-06-25 20:20:30 60 118944.2 940.3 8262.2 2.896 7913.8 2.942 2452816.34791667 KK Tel W-200C.fit 2003-06-25 20:21:37 60 120480.8 952.6 8183.7 2.920 7848.4 2.965 2452816.34869213 KK Tel W-201C.fit 2003-06-25 20:22:44 60 118075.7 974.9 8333.6 2.878 7682.9 2.967 2452816.34946759 KK Tel W-202C.fit 2003-06-25 20:23:50 60 116348.6 990.4 8177.2 2.883 7617.4 2.960 2452816.35023148 KK Tel W-203C.fit 2003-06-25 20:24:57 60 114960.7 1011.7 8042.9 2.888 7634.3 2.944 2452816.35100694 KK Tel W-204C.fit 2003-06-25 20:26:04 60 114244.2 1041.7 7934.7 2.896 7406.9 2.970 2452816.35178241 KK Tel W-205C.fit 2003-06-25 20:27:10 60 113002.0 1079.1 7760.3 2.908 7307.3 2.973 2452816.3525463 KK Tel W-206C.fit 2003-06-25 20:28:17 60 112017.3 1123.9 7848.3 2.886 7293.1 2.966 2452816.35332176 KK Tel W-207C.fit 2003-06-25 20:29:24 60 111596.6 1172.3 7776.4 2.892 7042.4 3.000 2452816.35409722 KK Tel W-208C.fit 2003-06-25 20:30:30 60 112273.1 1229.2 7720.0 2.907 7124.1 2.994 2452816.35486111 KK Tel W-209C.fit 2003-06-25 20:31:37 60 110405.1 1304.2 7804.1 2.877 7357.4 2.941 2452816.35563657 KK Tel W-210C.fit 2003-06-25 20:32:44 60 110460.0 1391.3 7508.4 2.919 7061.3 2.986 2452816.35641204 KK Tel W-211C.fit 2003-06-25 20:33:50 60 107880.0 1484.7 7372.3 2.913 7232.0 2.934 2452816.35717593 KK Tel W-212C.fit 2003-06-25 20:34:57 60 105973.5 1602.3 7320.0 2.902 7081.9 2.938 2452816.35795139 KK Tel W-213C.fit 2003-06-25 20:36:04 60 106988.5 1760.7 7748.0 2.850 6990.9 2.962 2452816.35872685 KK Tel W-214C.fit 2003-06-25 20:37:10 60 105819.8 1936.8 7319.7 2.900 6763.9 2.986 2452816.35949074 KK Tel W-215C.fit 2003-06-25 20:38:17 60 107211.6 2149.6 7469.9 2.892 7298.8 2.917 2452816.3602662 KK Tel W-216C.fit 2003-06-25 20:39:23 60 107514.6 2410.6 7514.1 2.889 7087.4 2.952 2452816.36103009 KK Tel W-217C.fit 2003-06-25 20:40:30 60 107975.6 2735.3 7585.0 2.883 7314.9 2.923 2452816.36180556 KK Tel W-218C.fit 2003-06-25 20:41:37 60 108030.1 3130.1 7715.6 2.865 6927.9 2.982 2452816.36258102 KK Tel W-219C.fit 2003-06-25 20:42:43 60 107950.7 3608.8 7663.6 2.872 6841.2 2.995 2452816.36334491 KK Tel W-220C.fit 2003-06-25 20:43:50 60 107315.4 4190.0 7706.9 2.859 6770.5 3.000 2452816.36412037 KK Tel W-221C.fit 2003-06-25 20:44:57 60 108193.6 4895.3 7435.8 2.907 6579.1 3.040 2452816.36489583 KK Tel W-222C.fit 2003-06-25 20:46:03 60 106512.0 5776.2 7619.5 2.864 7479.9 2.884 2452816.36565972 KK Tel W-223C.fit 2003-06-25 20:47:10 60 108495.5 6848.2 8072.3 2.821 7569.1 2.891 2452816.36643519 KK Tel W-224C.fit 2003-06-25 20:48:17 60 108445.6 8175.3 8157.4 2.809 7278.6 2.933 2452816.36721065 KK Tel W-225C.fit 2003-06-25 20:49:23 60 107318.6 9779.3 7477.0 2.892 7289.7 2.920 2452816.36797454 KK Tel W-226C.fit 2003-06-25 20:50:30 60 107680.2 11734.6 7705.4 2.863 6993.9 2.969 2452816.36875 KK Tel W-227C.fit 2003-06-25 20:51:36 60 108021.3 14079.2 7991.9 2.827 7167.0 2.945 2452816.36951389 KK Tel W-228C.fit 2003-06-25 20:52:43 60 108285.0 16891.3 7400.8 2.913 7285.3 2.930 2452816.37028935
WOODRIDGE OBSERVATORY 8 Diosma Rd, Eltham, Vic 3095, Australia
Dr Tom Richards, FRAS tom@woodridgeobsy.org
PHOTOMETRY REPORT
=================
OBJECT, DATE, CONDITIONS
------------------------
Object: KK Tel
Date of observation: 2003-06-25 UTC
Conditions: Calm night, moderate transparency, no clooud or moon, some light
ground fog around the middle of the imaging session..
EQUIPMENT
---------
Telescope: 180mm Astro-Physics apochromatic refractor @ f/9,
Camera: SBIG ST7e camera, Kodak KAF0401e NABG CCD chip
Further info on: http://vsnet.woodridgeobsy.org/observatory_data.htm
IMAGING
-------
Software: MaxIm/CCD 3.07
Imaging period: 11:17-20:53 UTC (9h 36m duration)
Exposure time: 60 s
Filter: Clear
Chip temperature: -32 deg C
Binning: 2
Scale: 2.28 arcsec/px
Field: 14.6 x 9.7 arcmin
Number of images: 562
Time resolution: 67.3 s
Timing accuracy: 1s
Calibration: Bias-subtacted, dark-subtracted & flat-fielded (MaxIm)
PHOTOMETRY
----------
Software: AIP4Win 1.4.12
Comp stars (magnitude data quoted in an email from Mati Morel, unsourced)
C: GSC 8418:502 V=11.04 B-V=0.69
K: GSC 8418:685 V=14.67 B-V=0.76
Aperture radii: 3.5/10/14 px (to avoid nearby bright star)
RESULTS
-------
Standard error in precision = 0.0187 mag (sigma on K-C scatterplot).
6 superhumps captured, the first peaking just after imaging commenced, and the last peaking just before imaging finished. Amplitude ~0.2 mag, interval=0.085d.
